Centralized Authentication in Quarkus using Keycloak OIDC

This document describes how to integrate Quarkus with Keycloak using OIDC protocol. It includes all required files and steps leading to working implementation.

Starting local Keycloak

  keycloak:
    image: keycloak/keycloak:latest
    ports:
      - "10000:8000" # Port 8000 locally is already taken on my machine
      - "8443:8443"
      - "8080:8080"
    command:
      - start-dev
    environment:
      KEYCLOAK_ADMIN: admin
      KEYCLOAK_ADMIN_PASSWORD: admin

Save this file as docker-compose.yaml and start it using docker-compose up -d command.

Include Maven dependencies

Add the following dependencies to pom.xml file:

<dependency>
    <groupId>io.quarkus</groupId>
    <artifactId>quarkus-oidc</artifactId>
</dependency>
<dependency>
    <groupId>io.quarkus</groupId>
    <artifactId>quarkus-keycloak-authorization</artifactId>
</dependency>

Configure Application

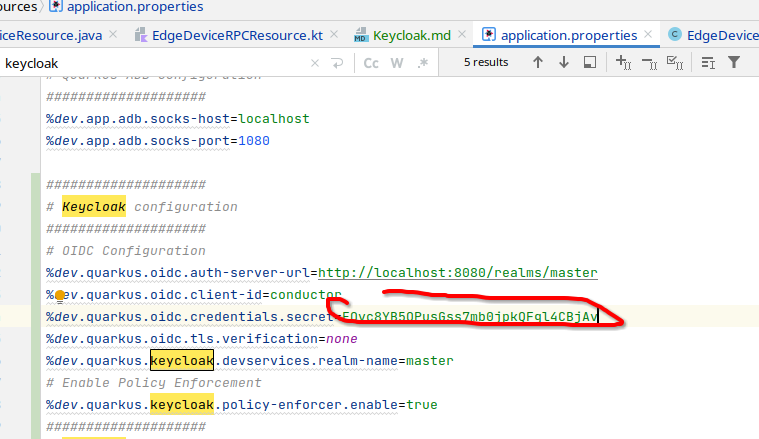

Add the following lines to local application.properties:

%dev.quarkus.oidc.auth-server-url=http://localhost:8080/realms/master
%dev.quarkus.oidc.client-id=conductor
%dev.quarkus.oidc.credentials.secret=EQvc8YB5QPusGss7mb0jpkQFgl4CBjAv
%dev.quarkus.oidc.tls.verification=none
%dev.quarkus.keycloak.devservices.realm-name=master

Configure Keycloak

Finally, add a custom user using the following link:

http://localhost:8080/admin/master/console/#/master/user

Also, ensure that created user has appropriate role as used in the code.

Testing authentication

Quarkus comes with a devtool for testing authentication and invocation of protected resources. It can be reached using the following URL:

http://localhost:13300/q/dev-v1/io.quarkus.quarkus-oidc/provider

http://localhost:8080/admin/master/console/#/master/user

Resources

• https://quarkus.io/guides/security-keycloak-authorization
